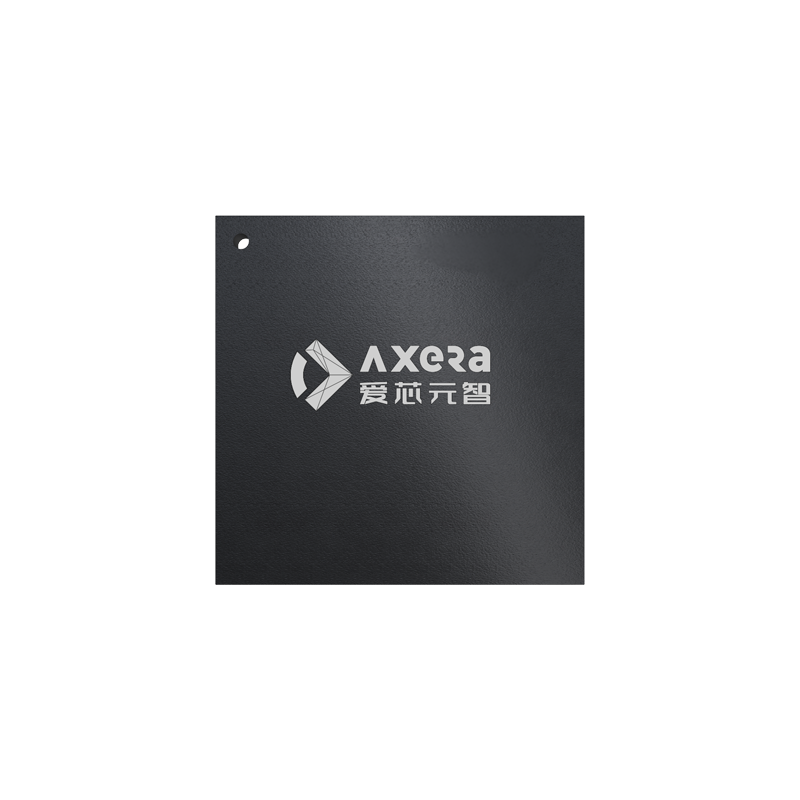

XS9915

XS99154-Channel HD/SD Analog Video Decoder

Download

XS9915 is a 4-channel analog composite video decoding chip that supports both HDcctv and CVBS protocols up to 1080P@60fps. XS9915 converts the received high-definition analog composite video signal through analog-to-digital conversion, video decoding, and 2D image processing into YUV format, which is then transmitted to the master chip via the MIPI CSI interface, enabling real- time preview and recording. XS9915 supports bidirectional coaxial audio over video for voice intercom with remote cameras, and also supports bidirectional data communication with camera for remote camera control and firmware upgrades. XS9915 features an embedded audio codec with 5-channel Line-In and 1-channel Line-Out interfaces.

Specifications

VI

4-channel analog composite video decoding
Support 1M/2M/4M RT video format and CVBS format
Support manually extended video format
Embedded Equalizer (EQ) amplifier for best extended reach performance
High speed 10-bit Analog-to-Digital (ADC) for video signal sampling
Programmable clamp control

Video Decoder

Enhanced automatic format recognition for video signal identification
Support AGC, ACC, White Peak
Brightness, Saturation, Contrast, Hue, and Sharpness adjustment
Advanced sync processor for best signal performance
Automatic frequency deviation compensation to accurate color demodulation
Integrated programmable high quality filter for Y/C separation

Audio

5-channel analog audio Line-In with PGA and digital processing
1-channel analog audio Line-Out with gain control
Support 8 or 16KHz sampling rate with a max resolution of 16-bit
Support bidirectional coaxial audio over video for voice intercom with remote cameras
Cascade-able up to 4 chips
Support 1-channel I2S for audio record and 1-channel I2S for audio playback
I2S support multiple channel output

VO

MIPI DPHY v1.2 compliant transmitter up to 4Lane
Support MIPI CSI-2 YUV422 date format
Up to 2.5Gbps/Lane
Support 1Lane/2Lane/4Lane mode
Support P/N swap
Support CVBS video output with field or frame mode

Bidirectional Communication

Programmable up-stream data sending over cable
Programmable down-stream data decoding
Support firmware upgrades for remote cameras
